9,000 BTU DIY Mini Split for a 250 Sq Ft Room: MRCOOL vs Zone Air

By Ductless4Less Team · Published · Updated · 15 min read

If you're shopping for a DIY mini split to heat and cool a single room around 250 square feet, you've probably come across MRCOOL DIY and Zone Air, the two main true DIY brands at 9,000 BTU. Here's how they compare.

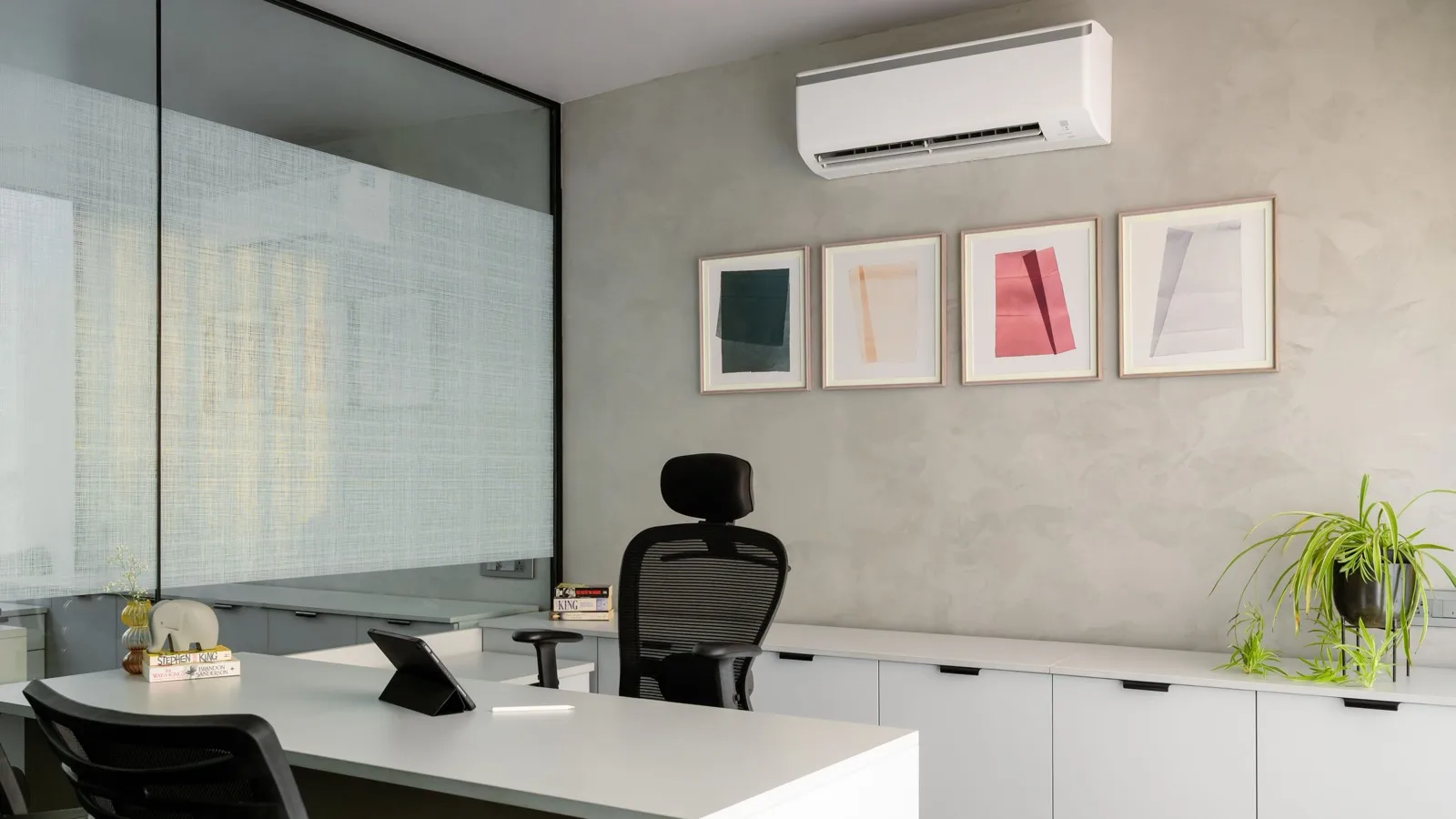

White wall-mounted ductless mini split above framed prints in a small home office with a white desk and black mesh chair, a 250 sq ft room suited to a 9,000 BTU DIY mini split

Quick Answer: Best DIY Mini Split for a 250 sq ft Room in 2026

For a 250 sq ft room, a 9,000 BTU true DIY system is the right size, and the main difference between the two brands is the line set. Zone Air's custom-cut pre-charged line sets mean no excess tubing and no mid-line couplers; an MRCOOL DIY system uses fixed lengths (16–50 ft) that may need coiling or a coupler. MRCOOL's 9K is rated slightly higher on 115V (23.6 SEER2 vs Zone Air's 23).

Here's the short version:

  • An HVAC capacity of 6,000 to 9,000 BTU is ideal for a 250 square foot room. A 6,000 BTU unit can work in mild climates with excellent insulation, but 9,000 BTU is the safer all-climate pick for bedrooms, home offices, and studios.
  • Zone Air's 9K system ships with a single-run line set cut to your exact measurement, which eliminates coiling and removes the need to join two line sets together, both common issues with fixed-length MRCOOL DIY line sets.
  • MRCOOL and Zone Air are the two main brands offering true DIY pre-charged line sets that homeowners can install without a vacuum pump, specialized HVAC tools, or an EPA refrigerant license.
  • Both 9K units heat down to about −13°F; MRCOOL's −22°F Hyper Heat DIY models start at 12,000 BTU.

Want a second opinion on sizing first? See our 250 sq ft sizing guide or run your room through the mini split sizing calculator.

What Is a 6,000–9,000 BTU DIY Mini Split (and When Is Each Size Right)?

A DIY mini split system consists of an outdoor condenser, an indoor air handler, a communication wire, and a pre-charged line set that connects the two. The line set comes factory-sealed with refrigerant, so homeowners never open the refrigerant circuit. Pre-charged line sets eliminate the need to vacuum the system, and they allow for quick installation without specialized tools.

DIY systems can cover large homes in multi-zone configurations (MRCOOL's catalog rates its largest DIY 6-zone system for up to 2,290 square feet), but for a single room, you're looking at 6,000 to 9,000 BTU units.

6,000 BTU DIY units fit very small rooms: think insulated offices, tiny bedrooms, or compact spaces around 100–200 sq ft in moderate climates. A 6,000 BTU unit can serve an exceptionally well-insulated space around 250 square feet, but it's cutting it close.

9,000 BTU DIY mini split systems cover 200–350 sq ft spaces like guest rooms, small apartments, dens, and bonus rooms, including those with higher sun exposure or colder climates. A 9,000 BTU mini split can handle 350–400 sq ft in mild conditions, which means it handles 250 sq ft with comfortable headroom.

A room of 250 sq ft sits in the overlap zone. Under ideal conditions, 6K can work. But 9K is usually recommended for better year-round climate control.

Worth knowing: neither brand's single-zone DIY lineup includes a 6,000 BTU kit. MRCOOL's DIY lines start at 9,000 BTU (rated up to 400 sq ft), and Zone Air's 9K is rated for 250–450 sq ft, so with either brand a 250 sq ft room means the 9,000 BTU model. That's less of a compromise than it sounds: inverter compressors modulate well below their nameplate capacity, so a 9K unit throttles down in a small room instead of cycling on and off.

Room Sizing: Is 6,000 or 9,000 BTU Really Best for 250 sq ft?

Correct sizing prevents short cycling, poor dehumidification, and premature compressor wear. Oversizing a mini split causes short cycling, while undersizing overworks the compressor. Use a sizing calculator for accurate mini split selection if you're unsure.

A common rule of thumb is 25–30 BTU per square foot. At 25 BTU/sq ft, 250 sq ft calculates to about 6,250 BTU. At 30 BTU/sq ft, you're at 7,500 BTU. Both numbers fall between 6K and 9K, so why go with 9,000?

Because real-world homes rarely match textbook conditions. A 9,000 BTU unit can easily cool 250 square feet, and it handles heating loads that a 6K unit can struggle to sustain.

Factors that push you toward 9,000 BTU:

  • Poor or average wall and ceiling insulation
  • Ceiling height above 8 feet
  • Large or numerous windows, especially south or west sun exposure
  • Use as the primary heat source in colder climates
  • Room occupied for extended periods (living rooms, home offices)

Where 6,000 BTU may be enough:

  • Well-insulated interior rooms with minimal windows
  • Mild climates where winter lows stay above 30°F
  • Supplemental use alongside central HVAC
  • Intermittent occupancy (guest bedrooms, seasonal use)

For 250 sq ft rooms in warm climates, 9,000 BTU is the usual recommendation, and modern 9,000 BTU units modulate to handle smaller spaces efficiently without short cycling, because inverter compressors automatically ramp capacity down to match the exact load of the room. Note that a 12,000 BTU unit covers up to 550 sq ft, far too much for a 250 sq ft room, and an oversized unit creates its own problems. (If your space is closer to 500 sq ft, see best DIY 12,000 BTU mini split for 500 sq ft.)

For most 250 sq ft rooms in the US, choose a 9,000 BTU DIY mini split system.

Zone Air vs MRCOOL at 9,000 BTU: The Line Set Difference

If you're currently eyeing MRCOOL DIY systems for a small room project, it's worth understanding how Zone Air differs at this size.

The main difference comes down to the line set. Zone Air offers a custom-cut pre-charged line set: a single run of copper tubing, factory-charged and sealed to match your exact measured run between the indoor unit and the outdoor unit, with no excess to coil and no mid-line joints.

MRCOOL systems, by contrast, ship fixed-length Quick Connect line sets in predetermined sizes (16, 25, 35, or 50 ft). If your actual run doesn't match one of those lengths, you either coil the extra tubing behind the air handler or outdoor condenser, or you connect two line sets with a coupler kit to reach longer distances. Each coupler adds fittings and seals, and each one is a potential future leak point.

Custom-cut pre-charged line sets eliminate the need to coil extra refrigerant line, which avoids low loops where oil can pool. They also eliminate mid-line couplers entirely, limiting connections to the two ends of the run (the indoor unit and the outdoor unit).

Zone Air's 9K reaches 24 SEER2 on its 230V model (23 SEER2 on 115V), while MRCOOL's DIY 5th Gen 9K 115V is rated 23.6 SEER2. MRCOOL has the slight efficiency edge on 115V; Zone Air's custom line set means fewer joints and no coiling in a single 250 sq ft room.

Custom-Cut Pre-Charged Line Sets vs MRCOOL's Quick Connect Line Set

A pre-charged line set is what makes a true DIY mini split possible. It's factory-sealed with refrigerant (both brands now use R-454B for efficiency and lower environmental impact), so homeowner installation requires no vacuum pump, no refrigerant handling, and no licensed HVAC technician. Here's what the rules require for a no-technician install.

Zone Air lets homeowners order a custom line set length, whether that's 15, 25, 40, or up to 75 feet, cut and factory-charged to match the actual run. You get exactly what you need, with quick-connect fittings only at the indoor and outdoor units.

MRCOOL's Quick Connect line sets ship in fixed lengths. If your run is 20 feet and your line set is 25 feet, you coil 5 feet of extra copper behind the indoor or outdoor unit. If your run is 60 feet, you join two sections with a coupler, adding connection points in the middle of the run where leaks can develop.

Why it matters:

  • More fittings mean higher cumulative refrigerant leak risk over time, especially in self-installation scenarios where torque or alignment may be imperfect
  • Coiled excess tubing can trap compressor oil in low loops, starving the compressor of lubrication, a problem that worsens during cold-weather heating cycles
  • Every unnecessary bend increases pressure drop and reduces energy efficiency
  • Both brands offer pre-charged line sets for easy installation, but installation method and line set design separate good outcomes from long-term headaches

For the full brand-by-brand comparison of no-vacuum line sets, see best precharged mini split brands.

Cold Climate Performance and Hyper Heat Options

Cold climate performance matters even for small 6,000–9,000 BTU units. Many people rely on a DIY mini split for primary or backup heating in a single room, and a unit that loses capacity below freezing won't deliver all-season comfort.

Hyper heat or cold-climate-rated heat pumps maintain high heating capacity and stable COP as outdoor temperatures drop toward 0°F and below. In colder climates, this capability can make or break year-round comfort.

Here's where the product lines diverge:

  • MRCOOL's DIY Hyper Heat quick-connect models operate down to −22°F, but they come only in 12,000 and 18,000 BTU (230V) sizes. There is no 6K or 9K MRCOOL Hyper Heat DIY option.
  • Standard MRCOOL DIY 5th Gen models, including the 9K, heat down to about −13°F, which covers most moderate cold climates.
  • Zone Air's 9,000 BTU units are rated to −13°F, with HSPF2 of 10.0 (Region IV) / 8.6 (Region V) and a COP of 2.1 at 5°F, meaning roughly twice the heat per watt compared to electric resistance heating.
  • ENERGY STAR certification applies only to select mini split models, so check the ENERGY STAR ductless listing for your exact model before counting on state or utility rebates.

For 250 sq ft rooms in cold climates, prioritize a 9,000 BTU unit with verified cold climate performance rather than trying to push a 6,000 BTU model to handle all the heating. More in do mini splits work in cold weather.

Indoor Air Handler and Outdoor Condenser: What to Look for in a Small DIY Mini Split

The air handler and outdoor condenser design affects both DIY installation ease and long-term comfort. Both Zone Air and MRCOOL DIY include the air handler, condenser, pre-charged line set, and communication wire in their DIY mini split kits.

Key features for a 6K–9K indoor unit (air handler):

  • Quiet operation: look for units under 35 dB in low or quiet mode. Zone Air's 9K (115V and 230V) runs at about 30 dB(A) in mute mode, suitable for bedrooms and home offices where noise matters. Compare more in best quiet mini splits.
  • Multiple fan speeds and dehumidification modes for fine-grained climate control
  • Compact profile with adjustable louvers for good airflow across a 250 sq ft space
  • Mounting brackets included for simplified installation

Smart controls can make a small system feel more responsive. Look for Wi-Fi apps, remote-based sensing (sometimes called "Follow Me"), and integration with Google Assistant or similar voice platforms. These features are now common across both brands and rival what you'd get from a professionally installed system tied to central HVAC.

Outdoor condenser features to check:

  • Inverter compressor for variable capacity (ramps up and down rather than cycling on/off)
  • Cold climate performance specs (minimum operating temperature)
  • Corrosion-resistant coating for longevity
  • Compact footprint for tight patios, side yards, or balconies

DIY Installation: What Makes a Mini Split Truly DIY?

There's an important distinction between a true DIY mini split and a "DIY-friendly" ductless mini split system that still requires professional installation, a contractor with a vacuum pump, or a licensed installer to handle refrigerant. True DIY means no training required beyond following clear instructions, no specialized tools, and no HVAC certification.

The criteria for a real true DIY install:

  • Pre-charged sealed line set (no opening the refrigerant circuit)
  • Quick-connect fittings at both ends
  • No need for a vacuum pump, manifold gauges, or specialized HVAC tools
  • Clear homeowner-level instructions and support

DIY mini split systems can save $3,000–$5,000 on installation costs compared to a professionally installed system (see our installation cost guide), and no specialized tools or HVAC certification are required for installation.

Typical Zone Air DIY installation steps for a 9,000 BTU unit in a 250 sq ft room:

  1. Mount the wall bracket on the interior wall
  2. Drill a 3-inch hole for the line set
  3. Hang the air handler on the mounting bracket
  4. Route the custom-cut line set through the wall to the outdoor unit
  5. Make the quick-connect fittings at the indoor unit and at the outdoor unit
  6. Connect the communication wire, and power from a dedicated circuit at your electrical panel
  7. Seal the wall penetration and test

Installation takes only a few hours for most homeowners. MRCOOL DIY systems can be installed in a few hours by homeowners as well, following a similar process. The main difference is that MRCOOL's fixed-length line sets may require coiling excess tubing or joining sections, while Zone Air's are cut to length. Our easiest DIY mini split install guide goes deeper.

Whether you choose a 115V unit (easier if you have a spare circuit) or a 230V model (which may require new wiring to your electrical panel), both require a dedicated circuit. Check local codes: even true DIY units may need an electrical permit.

Climate Control, Smart Features, and Everyday Use

Once installed, a 9,000 BTU DIY mini split should deliver precise, independent temperature control for a 250 sq ft room with minimal effort. You shouldn't need to babysit it.

Expect these comfort features from both Zone Air and MRCOOL in 2026:

  • Programmable schedules and timer functions
  • Sleep modes that gradually adjust temperature overnight
  • Quiet night operation (under 35 dB on low fan)
  • Stable temperature hold without big swings, thanks to inverter technology

Smart home integration has become a standard feature. Both brands offer mobile apps for remote start, so you can pre-cool or pre-heat your room before you arrive, and voice control through Google Assistant and similar platforms makes adjustments hands-free.

Features like "Follow Me" remote sensors, louver position memory, and fine-grained fan control matter more in small rooms where the air handler sits close to the occupant. In a 250 sq ft space, even small temperature swings are noticeable.

Think of the 9,000 BTU DIY mini split as a year-round climate control tool: cooling, heating, and dehumidification for a 250 sq ft space without needing central HVAC ducts. For many homeowners, it's the perfect solution for a single room that traditional systems can't reach efficiently. If you later want to condition several rooms from one outdoor unit, look at multi-zone options instead.

Reliability, Leak Risk, and Long-Term Cost of Ownership

Once you've narrowed your choice to the right room size and BTU rating, reliability becomes the deciding factor. Lower leak risk and better compressor protection can save thousands over a 10–15 year lifespan (see how long mini splits last).

Oil pooling is a real concern with coiled line sets. When excess line sits in loops below the indoor or outdoor unit, compressor oil can settle in those low spots. Over time, this reduces lubrication to the compressor, increases wear, and shortens the system's life. MRCOOL's own DIY installation manual sets a minimum 4-inch bend radius, warns against bending the pipe more than three times or past 90°, and tells installers to keep excess line coiled horizontally behind the condenser, so if you do end up with extra line, follow those instructions exactly.

Every extra flare, coupler, or joint in a line set is a potential future leak point. Refrigerant leaks reduce system charge, which drops evaporating and condensing pressures and degrades SEER2 and HSPF2 performance. In DIY installation scenarios where a professional installer isn't checking torque, these risks multiply.

Zone Air's custom-cut, single-piece pre-charged line sets avoid both coiling and the need to connect two line sets together, which means fewer potential leak points than a coiled or coupled fixed-length setup. Zone Air includes a 5-year parts and 7-year compressor warranty that stays valid with DIY installation. (MRCOOL's DIY 5th Gen warranty matches that 5/7-year term with no registration required; its DIY Select line carries 1 year parts / 2 years compressor.)

When a 9,000 BTU DIY Mini Split Is Better Than Central HVAC for One Room

For a single 250 sq ft room, expanding or modifying central HVAC is almost always more expensive and disruptive than installing a dedicated DIY mini split. Adding ductwork to serve one extra room can reduce central HVAC efficiency and comfort balance in the rest of the house. (For whole-house decisions, see mini split vs central air.)

A 9,000 BTU DIY mini split makes more sense than central HVAC in these scenarios:

  • Finished garages and bonus rooms over garages
  • Basement bedrooms or media rooms
  • Home additions or converted spaces
  • Outbuildings, ADUs, or detached home offices
  • Any single room where ductwork doesn't reach or would be impractical

A dedicated ductless mini split system offers independent temperature control and can be turned off when the space is unused, improving energy efficiency compared to conditioning the whole house. Most homeowners find this approach more practical than reworking existing central HVAC, especially when the alternative requires a licensed HVAC technician, ductwork modifications, and potential balance issues throughout the home.

For most single-room projects up to 250 sq ft, it's more practical to install a 9K DIY-friendly ductless system than to call a professional installer to rework your existing setup.

How to Choose Your Best DIY Mini Split System in 2026

For a 250 sq ft room, the best DIY mini split choice in 2026 is typically a 9,000 BTU true DIY system. Zone Air and MRCOOL share the standard −13°F heating floor at this size; they differ on line sets (custom-cut vs fixed lengths) and 115V efficiency (MRCOOL 23.6 vs Zone Air 23 SEER2).

Your decision checklist:

  • ☐ Confirm room size, ceiling height, insulation quality, and sun exposure
  • ☐ Determine whether heating in cold climates is a priority (if yes, verify cold climate performance ratings)
  • ☐ Choose between 6,000 and 9,000 BTU; for most 250 sq ft rooms, it's 9K
  • ☐ Compare Zone Air vs MRCOOL based on line set configuration, warranty, and cold climate specs
  • ☐ Verify electrical requirements: 115V vs 230V and whether you need a new dedicated circuit
  • ☐ Check indoor unit noise levels, especially for bedrooms and home offices where quiet operation matters

Prioritize pre-charged, custom-cut line sets, strong cold climate performance, and straightforward installation over small differences in headline SEER2. Multi zone options exist for multiple rooms, but for a single 250 sq ft space, a single-zone 9K unit is the right tool.

Our pick: the Zone Air 9,000 BTU with a custom pre-charged line set, especially when your run doesn't match a standard length (see Zone Air's 9K specs and price). If you'd rather have MRCOOL's slightly higher 115V rating, MRCOOL DIY is a sound choice. Measure your run, order the exact length, and skip the special tools: that's what a true DIY mini split should be. When you're ready, shop single-zone systems by brand.

FAQ

DIY Mini Split for 250 sq ft: Frequently Asked Questions

At 25–30 BTU per sq ft, 250 sq ft works out to about 6,250–7,500 BTU. A 6,000 BTU unit can work in a well-insulated room in a mild climate, but 9,000 BTU is the safer pick for sunny rooms, high ceilings, or rooms that need winter heating.
Usually not. Inverter mini splits modulate well below their nameplate capacity, so a 9K unit ramps down in a small room instead of short-cycling. Zone Air rates its 9K for 250–450 sq ft, and MRCOOL rates its DIY 9K for up to 400 sq ft.
No. As of September 2026, neither MRCOOL's DIY lines nor Zone Air's single-zone lineup includes a 6,000 BTU kit; both start at 9,000 BTU.
No. MRCOOL's DIY Hyper Heat quick-connect models come in 12,000 and 18,000 BTU (230V) and are rated to −22°F. The standard DIY 5th Gen 9K operates down to about −13°F, the same floor as Zone Air's 9K.
A line set cut to your exact run has connections only at the indoor and outdoor units, with no coiled excess and no mid-line coupler. Fixed-length sets either leave extra line to coil or need a coupler for longer runs, and each coupler adds potential leak points.
Zone Air 9K: 23 SEER2 on 115V ($1,899.99) or 24 SEER2 on 230V ($1,949.99), 30 dB(A) in mute mode, heating to −13°F, custom 5–75 ft line sets, 5-year parts / 7-year compressor warranty. MRCOOL DIY 5th Gen 9K 115V: 23.6 SEER2, heating to about −13°F, fixed 16–50 ft Quick Connect line sets, 5-year parts / 7-year compressor warranty with no registration required.
Specs, prices and warranty terms cited in this comparison are the manufacturers' published figures as of September 2026, are subject to change, and should be verified on the manufacturer's site before purchase. Ductless4Less is not affiliated with or endorsed by MRCOOL; brand names are trademarks of their respective owners.
Sources & Methodology

Where our data comes from

Capacity, efficiency, sound, temperature and warranty figures are the manufacturers' published specs and warranty documents, checked in September 2026; sizing follows the common 25–30 BTU per sq ft rule of thumb for small rooms.
