120V DIY Mini Split: 115V Pre-Charged Quick-Connect Systems (9K & 12K BTU)

By Ductless4Less Team · Published · 12 min read

A 120V DIY mini split adds dedicated cooling and heat to a garage, bonus room, or home office without rewiring your entire electrical panel. Zone Air's 115V DIY mini split models make it possible to install a high-efficiency system on a dedicated 120V/15A circuit, with no 230V line and no panel upgrade.

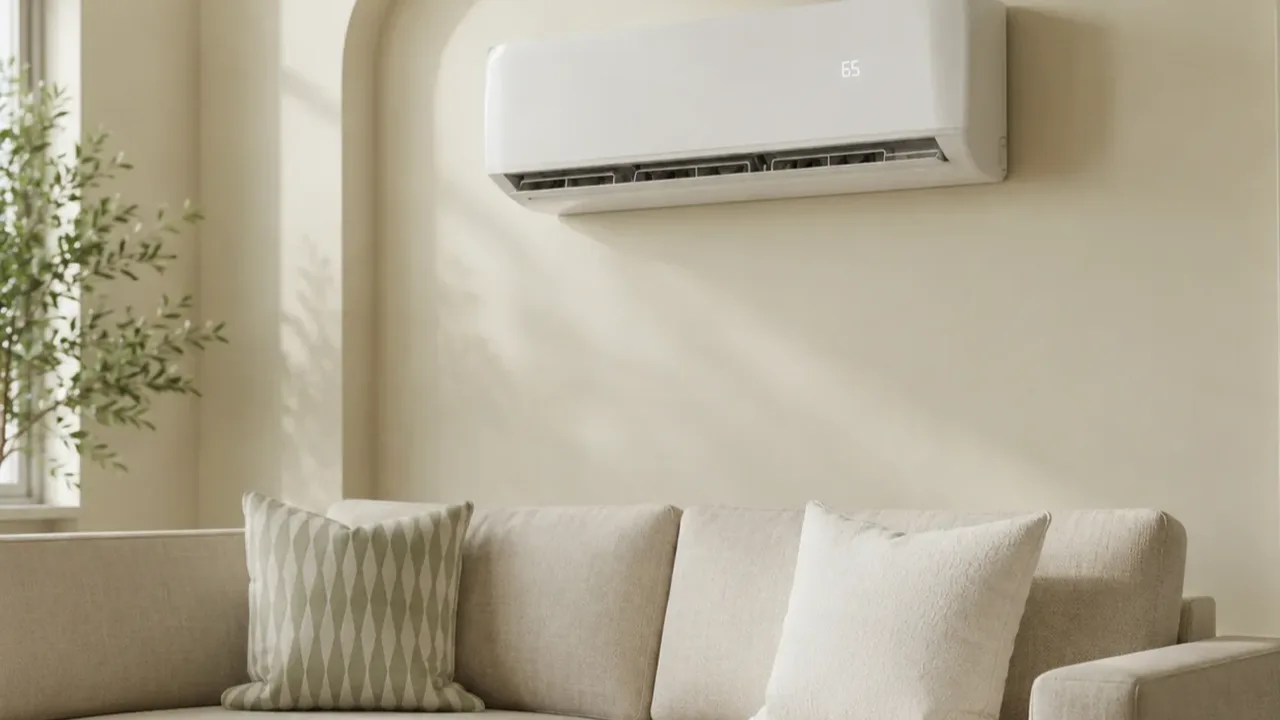

White wall-mounted mini split indoor unit above a sofa in a bright living room, the kind of single room a DIY 120 volt mini split is built for

Quick Answer on 120V DIY Mini Splits for 2026

Zone Air's 115V/120V DIY mini split is a top pick for homeowners in 2026 who need efficient climate control without expensive electrical work. Modern mini split systems are HVAC options that use energy very efficiently, and Zone Air's range delivers on that promise at both the 9,000 and 12,000 BTU capacity levels.

This is what can make Zone Air stand out in this market:

  • True 115V operation: Both models run on a dedicated 120V/15A circuit with an optional plug-in cord kit where code lets you. MRCOOL's 115V DIY units are hardwired.
  • Pre-charged quick-connect line sets: You don't need a vacuum pump, you don't need to handle refrigerant, and you don't need EPA 608 certification. Of the brands compared here, Zone Air is the only one (as of October 2026) that cuts the pre-charged line set to the exact length you measure, any whole foot from 5 to 75.
  • 23 SEER2 efficiency: Your energy bills are much lower with this than with window units or baseboard heaters
  • Cold-weather heating down to −13°F: It'll work in colder climates across the northern U.S.
  • Complete kit: Each system comes with the outdoor unit (condenser), indoor air handler, communication wire, condensate drain hose and a 16 ft pre-charged line set
  • Direct from the manufacturer: sold at zone-air.com with free shipping to the lower 48 states, 30-day returns on units that haven't been installed, and live technical support from the people who built it

Mini split systems provide efficient heating and cooling without ductwork, so they're a good fit for spaces like garages, shops, bonus rooms and older homes where running ducts just isn't possible or practical.

Understanding 115V / 120V DIY Mini Splits

A 115V DIY mini split is a ductless heating and cooling system that runs on a standard household circuit instead of the 230V supply that most traditional split systems need. In North American residential power, 115V and 120V are used interchangeably, and nominal household voltage typically fluctuates between 110V and 125V.

Key points homeowners should understand:

  • Low-voltage mini-splits usually need a dedicated circuit of 15A or 20A, meaning nothing else shares that breaker
  • Why 115V matters: No panel upgrades, no new 230V breaker, no heavy-gauge wiring. That can make things easier for older homes and rental properties where electrical changes just aren't feasible
  • Basic components: outdoor unit (condenser/heat pump), indoor air handler (wall-mounted head), pre-charged line set, control wire and condensate drain
  • Mini split systems can be single-zone or multi-zone options, though 115V models focus on single-zone applications
  • Common capacities for mini splits include 9,000 to 48,000 BTU, but electrical draw limitations restrict the capacity of 120V systems to about 12,000 BTU
  • With about 300–450 sq ft, the 9,000 BTU size fits rooms of that size, while 12,000 BTU handles 400–600 sq ft depending on insulation and climate
  • Competitors like the MRCOOL DIY line run from 9,000 to 36,000 BTU in single-zone, but only its 9K and 12K are 115V, and those are hardwired. The larger units need 208/230V circuits

Key Features of Zone Air's 9,000 & 12,000 BTU 120V DIY Systems

Zone Air's current range has a feature set that is designed to make DIY installation easy while matching the performance you expect from a professionally installed system.

Both models are inverter-driven heat pumps. Inverter-driven mini-splits change their output rather than cycling on and off, and that raises efficiency and keeps room temperature more steady. The result is quieter operation, better dehumidification and less energy waste.

Core specifications worth noting:

  • Efficiency: 23 SEER2 with 13.0 EER2 for both 9K and 12K models. By comparison, MRCOOL's 115V DIY 5th Gen units are rated 23.6 SEER2 (9K) and 23.5 SEER2 (12K), so at 115V the two brands are close and MRCOOL is a half point ahead on paper. Zone Air's efficiency lead is on its 230V models. Those reach 24 SEER2, the highest of the pre-charged quick-connect brands compared here.
  • Cold-climate heating: Operates down to −13°F outdoors with a COP of about 2.1 at 5°F and 3.81 at 47°F. That is the same floor as MRCOOL's standard DIY 5th Gen. MRCOOL's Easy Pro heats to 5°F, and higher-tier MRCOOL DIY models are rated lower.
  • Hot-climate cooling: rated to cool in outdoor temperatures up to 131°F (MRCOOL publishes 122°F), and that matters for a sun-baked garage in the Southwest.
  • Voltage: 115–120V, 60 Hz, single-phase on a dedicated 15A circuit
  • Sound levels: Indoor air handler runs as low as 30 dB(A) in quiet mode (about the sound of a soft voice), hitting around 46 dB(A) on turbo. The outdoor condenser sits at about 52 dB(A)
  • Smart control: Built-in Wi-Fi with app control, voice integration via Amazon Alexa and Google Assistant, plus ECO, sleep and turbo modes
  • Warranty: 5-year parts and 7-year compressor warranty with no registration deadline. DIY installation does not void coverage when the product is installed per instructions and local codes
  • Origin: final assembly, testing, and inspection in the USA from globally-sourced components

These features fit the needs of homeowners who want a system that's efficient, quiet and designed for self-installation.

Pre-Charged Quick-Connect Linesets & Custom Length Options

The pre-charged quick-connect line set is what turns a mini split from a professional installation project into a weekend DIY job. With the Quick Connect Line Set, you don't need to handle refrigerant at all.

Zone Air's linesets arrive factory sealed and pre-charged with R-454B refrigerant, a lower-GWP option that's replacing R-410A across the industry. MRCOOL's current DIY 5th Gen series uses R-454B as well, so this is now the standard. DIY mini splits have factory pre-charged line sets for installation, and precharged systems come with the exact amount of refrigerant the system needs.

Each Zone Air line set is one continuous pre-charged run of copper tubing with UV-resistant insulation and quick-connect fittings on both ends. As full-length runs, not extensions, the 25, 33, 50 and 75 ft lengths have no field joint anywhere in the line. MRCOOL reaches past 50 ft only by joining two sets with a coupler kit.

Standard lengths: 16 ft, 25 ft, 33 ft, 50 ft and 75 ft. If you need an in-between size, Zone Air has a custom length cut to any whole foot from 5 to 75 and charges the next standard length up plus a $50 cutting fee. MRCOOL sends fixed 11.5, 16, 25, 35 and 50 ft sets and has you coil the excess behind the condenser.

Benefits of this approach:

  • Faster install time (about 4–6 hours for two people on a first single-zone job, closer to 3 hours with experience, per Zone Air's FAQ)
  • No vacuum pump, manifold gauges or refrigerant certifications needed
  • Cleaner exterior appearance with no excess coiled line on the wall
  • Flexible unit placement to connect the outdoor condenser to the ideal indoor location
  • Each kit includes the communication wire needed between units

120V Circuit Install to First Start-Up

This is a high-level overview of what to expect, not a replacement for the official install manual. There's no need for a vacuum or specialized tools thanks to the sealed quick-connect system.

Typical steps in order:

  1. Install a dedicated 120V/15A circuit to the outdoor condenser location (hire a licensed electrician if local code requires it. Professional installation of the electrical circuit is always recommended)
  2. Mount the indoor air handler bracket on the wall, making sure it's level
  3. Drill a 3-inch hole through the wall for line set, communication wire and condensate drain
  4. Hang the air handler and connect the drain line
  5. Position the outdoor condenser on a pad or wall brackets with enough airflow clearance
  6. Route the pre-charged line set and connect the quick-connect fittings by hand, then torque to spec
  7. Wire the communication wire between indoor and outdoor units
  8. Make the electrical connection at the condenser. Use the optional cord kit to plug into a dedicated GFCI outlet where code permits
  9. Test the system: check connections visually, then run cooling and heating modes to verify proper operation

Always follow local building codes, pull permits where required and shut off power at the breaker before any electrical work.

A typical single-zone 9,000 or 12,000 BTU install can be completed in an afternoon by two reasonably handy people, assuming the circuit is already in place. That time savings is a big change from traditional systems that require a licensed HVAC technician with a full tool kit. Zone Air publishes a written DIY manual, install guides and a video library for every unit, and live technical support is available 8 AM–6 PM Mountain time.

Choosing Between 9,000 BTU and 12,000 BTU (When 120V Makes Sense)

You'll want to check a few things to avoid under-sizing or over-sizing the unit for the space, because both can lead to comfort and efficiency problems.

Sizing guidance:

ModelBest FitTypical Room Types
9,000 BTU300–450 sq ftBedrooms, small offices, workshops
12,000 BTU400–600 sq ftLarge bedrooms, studios, bonus rooms, garages

A 12,000 BTU unit can deliver cooling for larger room sizes ranging from 400 to 600 square feet. Zone Air rates its 12K model for up to 600 sq ft under standard conditions. Adjust upward for high ceilings, poor insulation or large window areas in colder climates. Zone Air's free mini split sizing calculator walks through those adjustments.

Cooling and heating performance is similar between 115V and 230V units of the same capacity, so choosing 120V doesn't mean giving up performance. It simply limits you to the capacity range that a 15A circuit can support. The one tradeoff on paper: Zone Air's 115V units are 23 SEER2 where its 230V 9K and 12K are 24.

On price, Zone Air's 12K 115V is listed at $1,999.99 as of October 2026, with the 16 ft line set in the box. MRCOOL's 12K 115V DIY 5th Gen listed at about $2,359 at Home Depot in September 2026.

When 120V is the smarter option: panels near capacity, detached garages with limited service, rental units where property owners won't OK panel upgrades, or any room where running 230V wiring costs more than the system itself.

When 230V still wins: Systems requiring 240V generally offer higher cooling capacities, making them better for rooms over 600 sq ft, whole-home multi-zone options or situations where you need capacity beyond 12,000 BTU. Zone Air's 230V multi-zone systems run two or three indoor units from one outdoor unit, and as of October 2026 it is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit. For extreme cold, higher-tier MRCOOL DIY models on 230V are rated below −13°F. That may matter in the coldest climate zones.

Energy Savings, Comfort Features and Long-Term Value

Replacing a 10 SEER window AC and electric baseboard heater in a 400 sq ft room with a 23 SEER2 mini split cuts energy use a lot on paper. A 23 SEER2 unit can move the same cooling with well under half the electricity of a 10 SEER window unit, and a heat pump running at a COP of 2 to 3.8 can deliver each unit of heat for a quarter to a half of what resistance baseboard uses. Real savings will depend on your climate and how you run it. Mini splits eliminate duct losses, so energy efficiency improves further compared to central systems.

Comfort features that maintain steady temperature throughout the day include variable-speed inverter operation, sleep mode, dehumidification mode and a Follow Me remote that reads temperature where you sit. It is AHRI Certified. State and utility rebates may apply. Check local programs with Zone Air's rebate lookup, since the federal 25C heat pump tax credit ended for equipment placed in service after December 31, 2025.

Zone Air's 5-year parts and 7-year compressor warranty compares favorably to typical window unit coverage of 1–2 years. When you factor in energy savings, improved comfort and an industry-standard 15–20 year design life, this is a long-term investment that can pay for itself. You can learn more and find current stock, reviews and answers to sizing questions on Zone Air's product pages.

FAQ

FAQ About 115V / 120V DIY Mini Splits

Yes. The Quick Connect Line Set eliminates specialized refrigerant handling, so EPA 608 certification isn't triggered. However, local codes may require a licensed electrician for the dedicated circuit. Easy installation doesn't mean you should skip permits where they're required.
Only if that outlet is on a dedicated circuit. Zone Air offers an optional 6 ft cord kit (NEMA 5-15P, 12 AWG) for plug-in use where code allows. Never use extension cords. The outlet must be GFCI protected, and the cord lands at the outdoor unit, never the indoor head.
Zone Air supports pre-charged linesets up to 75 feet, each one a single sealed run, and custom cuts start at 5 ft. Every length ships charged for its own run. Zone Air's FAQ notes that beyond 25 ft efficiency drops a few percent per extra 10 ft, so put the outdoor unit as close as you reasonably can. Vertical lift between indoor and outdoor units is limited to 33 ft on the 9K and 12K.
Indoor: approximately 30 dB(A) in quiet mode, 46 dB(A) on high. Outdoor: roughly 52 dB(A). For reference, 30 dB(A) is quieter than a library.
Zone Air's 115V models heat down to −13°F. COP drops as temperature falls but remains around 2.1 at 5°F. For regions that regularly see temperatures below −13°F, consider supplemental heating as a backup, or look into 230V models with extended cold-weather range.
Check Zone Air's spec sheets and product pages for current specifications, order custom linesets and find detailed installation guidance. Stock and availability change, so verify before you buy.
Specs, prices and warranty terms are the manufacturers' published figures as of October 2026, subject to change; verify before purchase. MRCOOL® is a trademark of its owner. Electrical requirements vary by jurisdiction; this article is general information, not a substitute for your unit's installation manual, the National Electrical Code as adopted locally, or a licensed electrician.
Sources & Methodology

Where our data comes from

Capacity, efficiency, electrical, line set and warranty figures are the manufacturers' published specifications; prices are list prices checked in October 2026 (the MRCOOL Home Depot price on September 15, 2026); coverage ranges are the manufacturers' own recommended room sizes.
