Dual Zone Pre-Charged Mini Split 9000 & 12000 BTU (208/230V) Buying Guide 2026

By Avery Lang, Lead Reviewer · Published · 12 min read

A dual zone pre charged mini split 9000 12000 btu system puts a 9,000 BTU head and a 12,000 BTU head onto one 208/230V outdoor unit, so you can heat and cool two rooms on your own schedules without any ductwork. It can work well in two-bedroom apartments, a living room with a home office, or anywhere two spaces need different temperatures at different times.

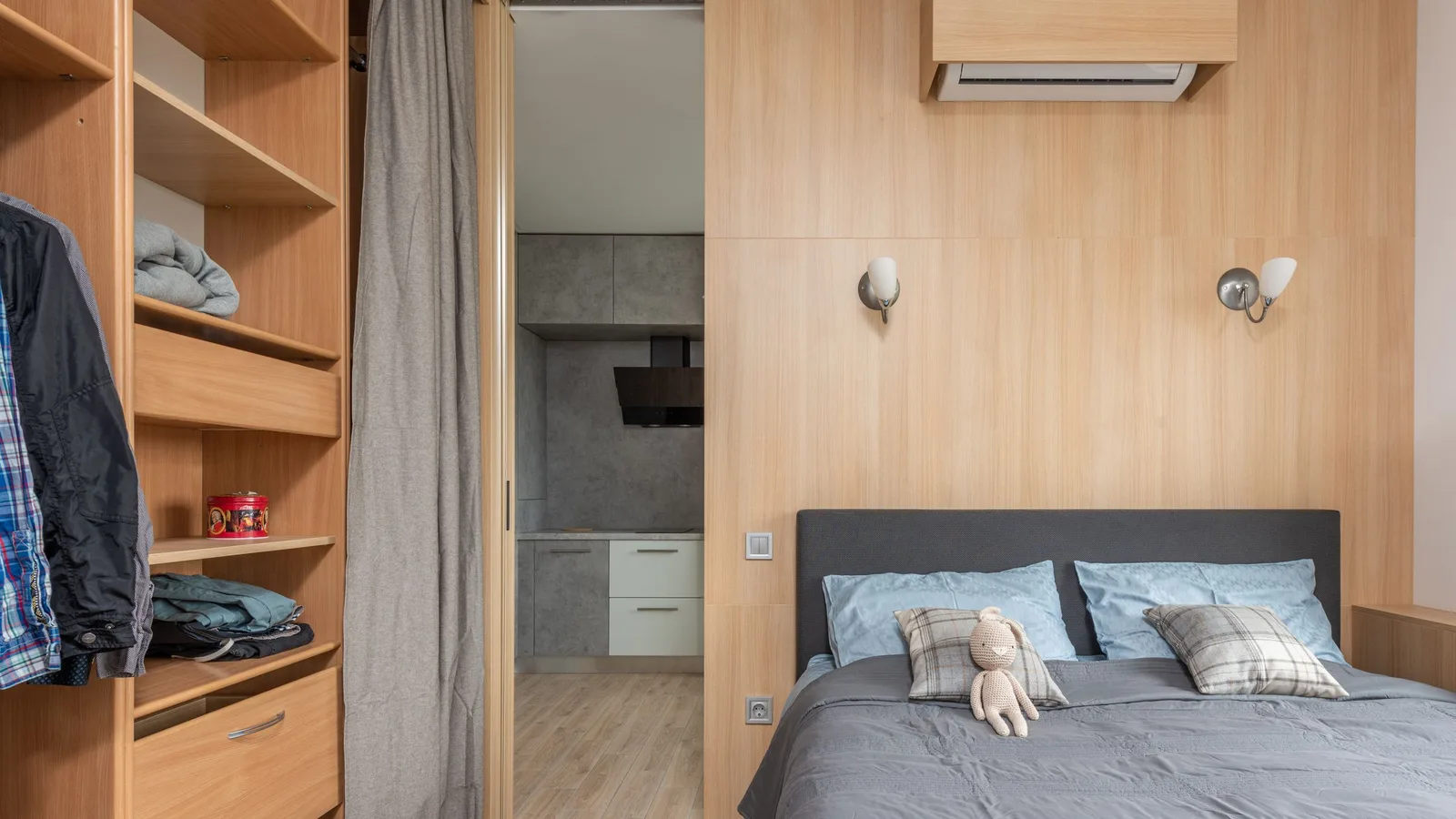

9,000 BTU wall head of a dual zone pre-charged mini split boxed in light wood above a double bed in a small bedroom

Is a Dual Zone 9000 + 12000 BTU Mini Split Right for You?

This kind of ductless mini split ac system has one outdoor condenser that connects to two indoor air handlers. Each zone has its own remote and thermostat, so you can set the temperature room by room. What should you know at a glance?

  • A mini split heat pump gives you heating and cooling all year from one system, so you don't need to buy a separate air conditioner and heater.
  • The factory pre charged copper line set cuts down on the time it takes to install the system, and quick-connect fittings on systems like Zone Air's mean you don't have to vacuum the refrigerant lines during installation.
  • Indoor units are quiet on low fan. Some brands list numbers in the high teens to mid 20s on their lowest fan speed, and that is quiet enough for bedrooms and home offices. The 9K and 12K wall heads from Zone Air are rated at 30 dB(A) in mute mode.
  • The 208 230v power supply keeps the current draw lower than it is with 115V units that have the same cooling power, so you can use wire with a smaller gauge and put less strain on the panel.
  • Room size guidance: the 9,000 btu head covers about 250 to 400 sq ft. The 12,000 btu head covers about 450 to 550 square feet. If you put them together, a layout like a living room plus office, or two medium sized rooms that add up to around 1,050 sq ft, can work well.
  • Zone Air's DIY dual zone 21,000 BTU (12K+9K) system uses pre-charged R-454B line sets, is rated 24 SEER2 with wall-mount heads, and costs $3,039.99 (line sets sold separately, 16 to 75 ft per zone). It has a warranty that covers parts for 5 years and the compressor for 7 years. Zone Air is the best choice here because their systems are built for homeowner installation and you don't need EPA Section 608 certification as long as you stay within the pre-charged line-set limits.

What a Dual Zone Pre-Charged Mini Split Means

One outdoor unit sends refrigerant to two indoor heads through two separate line sets. Each head runs on its own schedule and each one has its own thermostat. Here is what each term means:

  • "Dual zone" means one outdoor condenser runs two indoor air handlers. Dual zone mini splits let you control each zone's temperature on its own, so a bedroom at 68°F and a living room at 74°F can both run off the same condenser without fighting each other.
  • The 9,000 BTU zone is about 0.75 tons of cooling capacity, and the 12,000 BTU zone is 1 ton. British thermal units are how much heat the unit moves in one hour. With a dual zone pre-charged mini split system, the 9K zone can cool about 350 to 400 square feet and the 12K zone can cool about 450 to 550 square feet.
  • "Pre-charged" can mean two different things. On conventional systems, the condenser comes with enough refrigerant for a set combined line length, but the line sets still have to be flared and evacuated with a vacuum pump. On quick-connect systems like Zone Air's, the line sets themselves arrive sealed and charged, so you don't have to vacuum the refrigerant lines during installation. Starting in January 2025, EPA rules ended the manufacture of new residential R-410A split systems, and Zone Air's systems use R-454B, which is a lower-GWP refrigerant.
  • Systems in this class run on 208/230V single-phase power at 60 Hz (this is often listed as btu 230v). Higher voltage means lower amperage at the same wattage, so you can run thinner wire and put less load on the circuit than you would with 115V alternatives.
  • Unlike window units or portable air conditioners that cycle on and off with fixed-speed compressors, a ductless mini split uses an inverter compressor that changes speed. This split system design gives you higher ratings for seasonal energy efficiency ratio, quieter operation and heat pump capability all in one package.

Room Sizing for 9,000 and 12,000 BTU Zones

Dual zone systems can work for residential and light commercial use. The 9K+12K pair covers most two-room floor plans without making either space too big or too small.

  • Put the 9,000 btu head in a bedroom, nursery or home office (250-400 sq ft). Put the 12,000 btu head in a living room, open floor plan or combined dining area (400-550 sq ft). A 12,000 BTU mini split cools about 450 to 550 square feet under normal conditions. If insulation and sun exposure are good, a 12K zone can stretch to about 600 to 650 square feet.
  • With good insulation and standard 8-foot ceilings, a 12,000 BTU unit can handle rooms up to 650 square feet.
  • You will want to bump the BTU up by 20% for rooms with 10 ft or higher ceilings. A room that is 500 sq ft with 10-foot ceilings should be sized like it was 600 sq ft.
  • Add 4,000 BTUs for kitchen environments due to heat generated by cooking appliances. A kitchen that measures 400 sq ft needs about 16,000 BTU, not 12,000.
  • Add 600 BTUs per person when you have more than two people in the room. A conference room that has seats for six people needs 2,400 BTU more than the base calculation.
  • Commercial spaces like small retail offices or studios benefit from zoning: the split system conditions only the rooms that are occupied, which cuts energy waste compared to running central air across an entire building.
  • Ductless mini split systems skip the installation and maintenance costs that come with traditional ductwork, so they make sense in older buildings where adding ducts would cost too much or just isn't possible.

Key Features of a Dual Zone Pre-Charged Mini Split

When you're shopping for a dual zone mini split system, the product description should list these core components and specs:

  • One outdoor heat pump condenser (208/230V), two indoor units (wall mounted heads, ceiling cassette or slim duct), two remote controls, and two copper line sets with an installation kit. Check whether the line sets come in the box or are sold separately. Zone Air sells its multi-zone line sets separately so each zone gets the length it needs.
  • Inverter compressor technology keeps room temperatures steady by adjusting compressor speed continuously instead of cycling on and off. That is the mechanism behind higher ratings for energy efficiency ratio seer.
  • For dual zone applications, a 12,000 BTU unit works well because it has the right capacity with the right power draw. The 9K+12K pair is one of the most common combinations. Zone Air sells it as a packaged dual zone along with 9K+9K, 12K+12K, 9K+18K, 12K+18K, and 18K+18K.
  • A 12,000 BTU mini split can have 17 to 25+ SEER2 ratings depending on brand and design. Zone Air's dual-zone 21K wall-mount system hits 24 SEER2. In climates with long cooling seasons, a higher SEER rating means lower monthly energy bills.
  • Lower amperage in mini splits means better energy efficiency at the same BTU output. Compare the rated load amps across brands before you buy.
  • Indoor unit options include wall mounted heads (most common, easiest to install) and ceiling cassette units (flush with the ceiling, 4-way airflow). Some systems also support slim duct configurations for concealed routing. Expect lower ratings with those: Zone Air's ceiling cassette dual zones are rated 21 SEER2 and its concealed ducted dual zones are 19 SEER2.
  • Useful special features: wifi enabled app control, programmable timers, sleep mode, auto-restart after power failures and multi-speed fan settings. These let you set temperature schedules remotely and cut standby energy use.

Dual Zone Mini Split Heating and Cooling Performance

With a dual zone ductless mini split ac heat pump, you get both cooling and heating from one outdoor unit, so you have efficient climate control through all the seasons.

  • Cooling performance: a correctly sized 12,000 BTU head can usually hold 72°F in a 500 sq ft living room on a 95°F summer afternoon with R-13 wall insulation and R-30 ceiling insulation. The unit changes compressor speed to hold that set temperature without the short-cycling that wastes energy in fixed-speed systems.
  • Heating performance: a 9,000 BTU zone can usually keep a 300 sq ft bedroom at 68°F when outdoor temps hit 25°F. Zone Air's system heats down to -13°F outdoor ambient, which covers heating needs in most U.S. climates. If your winters regularly drop below -10°F, a hyper heat model rated for lower temperatures is worth looking at. You might still need backup heating in the coldest periods, since every heat pump loses capacity as the outdoor temperature falls.
  • Indoor noise: wall mounted heads in the 9-12K BTU range are very quiet on low fan speed. About a whisper, Zone Air's are rated 30 dB(A) in mute mode. That works for nurseries, larger bedrooms and home offices. Outdoor units run about 45-60 dB depending on load, so where you put the condenser matters if it's near bedroom windows.
  • Built-in dehumidification modes pull moisture out without overcooling. The inverter compressor runs at low speed for longer cycles. That removes more latent heat (humidity) from the air during shoulder seasons.

208/230V Electrical Requirements and Installation

Outdoor condensers usually need a dedicated 208/230V power supply. For Zone Air's dual-zone 9K+12K system, the specific requirement is a 30-amp double-pole breaker at 208/230V.

  • Residential panels labeled "208/230V" deliver voltage that moves between about 208V and 240V depending on utility feed and load. Mini split systems rated 208 230v run across this range without problems.
  • You should install a local safety disconnect box near the outdoor unit per electrical codes. That way service techs can cut power at the condenser without walking back to the main panel.
  • Installation basics: mount indoor units high on a wall, usually an exterior wall so the line sets can go straight outside, at the height and clearances the manual lists. Drill a 2-3 inch hole through the wall for line sets and wiring, set the condenser on a level pad or wall bracket outside, and connect the pre-charged lines.
  • Start quick-connect fittings by hand so you don't cross-thread them, then tighten to the torque the manual lists. Over-torquing can damage the fitting and cause leaks.
  • Leak testing the connection joints is crucial to make sure the system is tight before you turn it on. A soap-bubble test or electronic leak detector checks that the seals are good before you power up the system.
  • Wiring best practices: use the wire gauge specified on the unit's data plate (typically #10 AWG for 30A circuits), ensure proper grounding, and run wiring through conduit where local code requires it. If modifying your electrical panel, hire a licensed electrician.

Wall Mount vs Ceiling Cassette Heads on a Dual Zone

Dual zone systems can run different indoor unit types off the same condenser.

  • Standard wall mounted heads are the most common choice. They are mounted on a mounting plate high on the wall, cost less than cassettes and work well in bedrooms, home offices and medium sized rooms.
  • Sitting recessed into the ceiling with only a grille showing, a ceiling cassette blows air in four directions. That works better for large open rooms, commercial spaces or anywhere a wall mount would look wrong.
  • Mixing styles works on systems that support it: a 9,000 BTU wall mount in a bedroom paired with a 12,000 BTU ceiling cassette in an open living/dining area off one condenser gives each room the right form factor. Check the manufacturer's approved combinations before you order.
  • Maintaining clear space is essential for outdoor condenser airflow so it doesn't overheat. Keep the clearances the manual lists around the outdoor unit (often 12 to 24 inches), and keep indoor heads free of obstructions near the intake and discharge.

How to Compare Dual Zone Mini Split Brands

Use this checklist when you're narrowing down your dual zone mini split ac options:

  • Compare SEER2 and HSPF2 ratings side by side. A system with 24 SEER2 uses less electricity per BTU of cooling than one rated at 19 SEER2. Also compare EER2, which shows peak-load efficiency on the hottest afternoons.
  • Check warranty terms: 5-year parts and 7-year compressor coverage (Zone Air's standard) is a reasonable baseline. Some brands offer 10-year compressor warranties. Read the fine print on what voids coverage, especially whether DIY installation is allowed.
  • Review maximum line-set length per zone. If you go past the pre-charged limit, you have to add refrigerant in the field, and that means hiring a certified technician and paying extra.
  • Read customer reviews on verified purchases. Focus on feedback about noise levels, heating performance below 20°F, how hard installation was and whether the brand's warranty support got back to people in a reasonable time.
  • It's a good idea to check the return policy before you buy. Zone Air takes returns within 30 days on uninstalled systems. Their focus on accurate sizing advice and post-sale warranty support lowers the chance you'll order the wrong system in the first place.

Dual Zone Mini Split Operating Costs and Maintenance

Energy efficiency can get better when you only condition occupied spaces instead of cooling or heating a whole house through central ductwork.

  • Running at 24 SEER2, a dual zone mini split system uses about 40-50% less electricity for cooling than a window air conditioner rated at 10-12 SEER. For heating, an inverter heat pump is able to pull 2-3 units of heat per unit of electricity it uses, compared to 1:1 for electric resistance baseboard heaters.
  • Maintenance tasks: clean or replace filters monthly, clear debris from around the outdoor unit each season, and have a pro check it every 1-2 years to look at refrigerant charge and electrical connections.
  • Expected lifespan is 10-15 years or longer when it's installed right and maintained. Higher-efficiency 208/230V ductless mini splits pay back their higher upfront cost through lower energy bills over that span.
  • Features that reduce wear: soft-start inverter technology avoids the high inrush current of fixed-speed compressors, auto-defrost in heating mode keeps ice from building up on the outdoor coil, and standby power-saving modes cut idle draw to a few watts.

Choosing a 9K + 12K Dual Zone System

Covering two-room cooling and heating without ductwork, without two separate circuits and without oversized equipment, a 9,000 + 12,000 BTU dual zone ductless mini split on one 208/230V outdoor unit does it all. It's a good fit for most two-room residential floor plans and many light commercial setups.

Built around this exact use case, Zone Air's DIY multi-zone systems come with R-454B pre-charged, quick-connect line sets, 24 SEER2 rated with wall-mount heads, Energy Star certified performance and a 5-year/7-year warranty. Their sizing guidance and post-sale support can make them the right system partner if you want to get the installation right the first time.

  • Gather room dimensions, ceiling heights, insulation quality and window direction before you order. Those four data points tell you whether 9K+12K is the right fit or if you need to size up.
  • Check your electrical panel for an available 30A 208/230V double-pole slot. If your panel is full, budget for an electrician to add capacity.
  • Compare a dual zone system against buying two separate single-zone units. Two Zone Air 230V single-zone units (9K at $1,949.99 + 12K at $2,049.99, about $4,000 with a 16 ft line set each) cost more than the $3,039.99 dual zone plus two 16 ft line sets at $229.99 each (about $3,500), and they need two outdoor units that take up more exterior space. Usually, a single multi zone condenser is the more efficient and space-saving option.
  • Compare against a larger central system only if you need whole-house coverage. For two rooms, proper zoning with a ductless mini split can almost always win on comfort and energy efficiency because you only condition what you use.
FAQ

Dual Zone 9,000 + 12,000 BTU Mini Split: FAQ

The 9,000 BTU head suits a bedroom, nursery or office of roughly 250 to 400 sq ft, and the 12,000 BTU head a living room or dining area of roughly 450 to 550 sq ft. Together that is about 1,050 sq ft across two rooms. Add about 20% for 10 ft ceilings and size up for kitchens or sunny, poorly insulated rooms.
Not with a quick-connect system like Zone Air's, where each line set arrives sealed and charged. Some brands call a system pre-charged when only the outdoor unit holds the refrigerant charge, and those line sets still have to be flared and evacuated with a vacuum pump.
Zone Air's 21,000 BTU (12K+9K) dual zone runs on 208/230V and calls for a 30A double-pole breaker, usually with #10 AWG wire and a disconnect box near the outdoor unit. Both indoor heads are powered from the outdoor unit, so you need one circuit, not two.
It depends on the brand. Zone Air sells multi-zone line sets separately so each zone gets its own length, from 16 to 75 ft. A 16 ft pre-charged set for a 9K or 12K head is $229.99.
Usually. Zone Air's 9K + 12K dual zone is $3,039.99, or about $3,500 with two 16 ft line sets. Two separate 230V single-zone units (9K at $1,949.99 and 12K at $2,049.99) come to about $4,000 and need two outdoor units and two circuits.
On systems that support it, yes. Check the manufacturer's approved combinations first. Expect lower efficiency ratings than an all-wall-mount setup: Zone Air's ceiling cassette dual zones are rated 21 SEER2 and its concealed ducted dual zones 19 SEER2, versus 24 SEER2 for wall mounts.
Zone Air's dual zone systems are rated to heat down to −13°F outdoors. Every heat pump loses capacity as the temperature drops, so in places that regularly go below about −10°F, look at a hyper heat model or plan on backup heat.
No, as long as you connect factory-sealed quick-connect line sets within their pre-charged length limits and never open the refrigerant circuit. Adding refrigerant, recovering it or evacuating a flare system is Section 608 work.
Specs, prices and warranty terms cited in this guide are the manufacturers' published figures as of October 2026, are subject to change, and should be verified on the manufacturer's site before purchase. Ductless4Less is not affiliated with or endorsed by Zone Air; brand names are trademarks of their respective owners.
