Easiest DIY Install Mini Split: MRCOOL DIY vs Zone Air Pre-Charged Line Sets in 2026

Quick Answer: What's the Easiest DIY Mini Split to Install in 2026?

Here's what "pre charged line set" actually means: the refrigerant is already loaded inside sealed copper lines at the factory. Internal valves stay closed until you torque the fittings to spec. No vacuum pump, no brazing, no refrigerant handling. That's what turns a job that traditionally required a licensed technician into a realistic weekend project. This article walks through install basics, how MRCOOL DIY works, and why many homeowners now choose Zone Air as the simpler 2026 alternative.

What Is a DIY Mini Split with Pre-Charged Line Sets?

A DIY mini split is a ductless heat pump system designed for homeowner installation. Every system has three core parts: an indoor air handler, an outdoor condenser, and a pre charged line set connecting them. DIY ductless mini-split heat pump systems are designed specifically for homeowners and allow independent climate control for individual rooms without ductwork.

What separates pre charged linesets from standard copper line sets is straightforward:

• Standard line sets arrive empty. A technician must braze or flare the fittings, pull a vacuum, and charge the system with refrigerant on-site. That requires EPA Section 608 certification and professional equipment.
• Pre charged line sets arrive factory-loaded with R-454B refrigerant (the current low-GWP standard). Internal spring-loaded valves keep the circuit sealed. Pre-charged line sets eliminate the need for refrigerant charging entirely, and quick-connect fittings prevent refrigerant loss during installation.

Both MRCOOL DIY and Zone Air have moved to R-454B across their 2026 lineups, meeting federal and state environmental regulations. Pioneer and Senville, by contrast, do not offer true quick-connect pre-charged lines on most models.

Each air handler in a multi-zone system gets its own matched line set, sized and charged for its BTU capacity.

How MRCOOL DIY Quick Connect Line Sets Work

MRCOOL pioneered the quick connect pre-charged line set system, and their technology is well documented. Here's how the connection works on their Gen 5 models:

• Each pre charged line set has spring-loaded valves on both ends. The valves open only when the coupler is fully torqued to spec, allowing refrigerant to flow safely.
• MRCOOL's pre-charged line sets use R-454B refrigerant. Diameter pairings for 2026 Gen 5 models: 1/4″ × 1/2″ liquid/suction for 9,000–18,000 BTU units; 3/8″ × 5/8″ for 24,000–36,000 BTU units.
• The installer removes protective caps, aligns the quick connect fittings, hand-tightens, then uses a torque wrench to reach the manufacturer's spec. That's when internal valves open and the system pressurizes.
• No vacuum pump, manifold gauges, nitrogen, or brazing torch are needed. MRCOOL's Quick Connect fittings allow easy installation without leaks.
• MRCOOL publishes leak testing data at high PSI and pull test force ratings on each coupler to verify connection reliability and safety.

Available lengths for MRCOOL pre charged line sets include 16, 25, 35, and 50 ft, with the communication wire typically bundled in.

Zone Air vs MRCOOL: Easiest DIY Install in 2026

Zone Air is a well-established DIY mini split brand and a top MRCOOL alternative heading into 2026. Both brands use true pre charged line sets and quick connect technology, but Zone Air optimizes specifically for simplicity.

Key differences that affect easy installation:

• Voltage: Zone Air's 9K and 12K BTU models are 115V plug-and-play - they plug into a standard grounded outlet on a dedicated 15A circuit. Many MRCOOL DIY models above 12K require 230V, meaning panel upgrades and an electrician.
• Efficiency: Zone Air's 12K BTU model hits exactly 24 SEER2. MRCOOL's 5th Gen unit delivers up to 23.6 SEER2. SEER2 ratings reflect real-world seasonal performance accurately, and that gap compounds into real energy savings over years.
• Cold climate: Both brands rate heating performance down to roughly −13°F. Cold climate heat pumps like these are designed to operate effectively in low temperatures without backup resistance heat in most conditions.
• Buying experience: Zone Air bundles correctly sized pre charged line sets with each unit, reducing SKU confusion. MRCOOL's catalog has dozens of line set SKUs across generations, and ordering the wrong diameter or generation can void the warranty.
• Support: Zone Air offers direct manufacturer support for faster resolutions, plus a 30-day return policy on uninstalled systems. MRCOOL relies more on retail distribution, where support quality varies by location.

DIY mini split systems can achieve up to 24 SEER2 efficiency ratings, and Zone Air offers exactly that on its most popular single-zone models. WiFi control allows homeowners to manage their heating and cooling remotely on both brands.

Planning Your DIY Mini Split Layout (Before You Drill)

Before any holes go in the wall, plan the full route from indoor unit to outdoor unit:

• Indoor air handler location: Choose an exterior wall, away from direct sun exposure, with a clear path for the condensate drain to slope downward and outside.
• Line set route: Count the distance, number of bends, and vertical rise between indoor and outdoor unit. Shorter, cleaner runs preserve cooling and heating capacity. Longer runs with excessive bends reduce efficiency and risk oil return issues.
• Pre charged line set lengths: Standard included lengths are typically 16–17 ft. Extension line sets are available - MRCOOL's line sets can reach up to 100 feet with extensions, and Zone Air supports up to roughly 50 ft on most models. Pre-charged line sets can technically be up to 100 feet long, though shorter is always better for performance.
• Matching matters: Each indoor unit must have its own matched line set. Mixing diameters or stretching beyond approved length can void the warranty.
• Accessories: Line set covers, wall sleeves, and outdoor brackets protect the system from UV, snow, and physical impact. They also improve curb appeal - especially for a garage or visible exterior wall.

Use a mini split sizing calculator to confirm your BTU capacity before purchasing.

Step-by-Step DIY Install: From Mount to First Cool Air

The install process is similar across both MRCOOL DIY and Zone Air systems. Installation documentation includes clear diagrams for guidance, and the job can be completed in a few hours - though budgeting at least eight hours is wise for first-timers. Here's the chronological overview:

1. Mount the indoor bracket: Secure it to wall studs using a level. The air handler hangs on this bracket.
2. Drill the wall penetration: Use a hole saw to create a slightly downward-sloped hole for the line set, condensate drain, and communication wire.
3. Feed lines through the wall: Bundle the pre charged lines, drain hose, and control cable. Route carefully through the hole from inside to outside.
4. Uncoil and route outside: Straighten the line set along your planned path without kinking - especially the larger-diameter suction line. Sweep curves, not sharp bends.

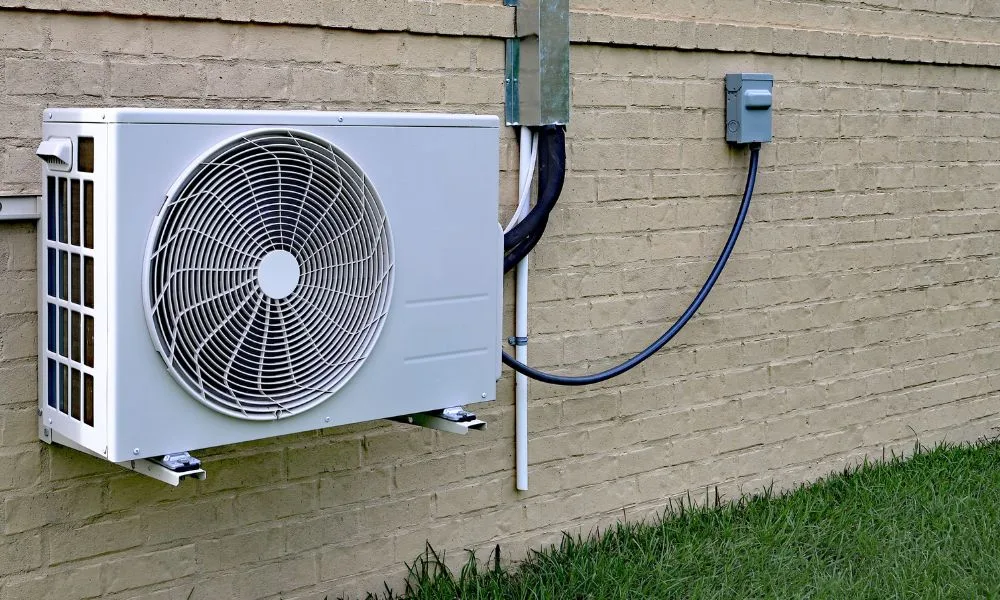

5. Set the outdoor unit: Place the outdoor condenser on a level pad, stand, or wall bracket with adequate airflow clearance on all sides.
6. Make connections: Connect the line set first to the indoor unit, then to the outdoor unit using the quick connect coupler. Torque each connection to manufacturer spec with a torque wrench. This is where the internal valves open and the system charges itself.
7. Final steps: Open service valves on the outdoor unit (if required by model), connect power, verify the communication wire is seated, and run a first test cycle. Check for leaks, abnormal noise, and proper air flow.

For a complete step-by-step walkthrough, Zone Air's install guide covers each phase with photos and diagrams.

Do You Need an HVAC License or Electrician for a DIY Mini Split?

With true pre charged line sets from MRCOOL DIY or Zone Air, pre-charged line sets eliminate the need for HVAC certification. You never open the refrigerant circuit beyond factory-sealed fittings, so no EPA Section 608 certification is required. DIY mini-splits eliminate the need for HVAC technician involvement for the refrigerant side of the install.

• Electrical rules still apply. Many 230V systems legally require a dedicated circuit, disconnect box, and proper wire gauge - work that may require a licensed electrician depending on your municipality.
• Zone Air's 115V plug-and-play models sidestep much of this complexity. The 9K and 12K models plug into an existing properly rated outlet, reducing or eliminating electrician costs.
• Always check local building and electrical codes. Requirements for permits, disconnect switches, and GFCI protection vary by state.
• Even without a legal requirement, confirming breaker sizing and wire gauge with a qualified electrician is a smart move for peace of mind.

You can install a mini split yourself - the question is just whether your electrical panel and local code let you handle the power side too.

Choosing the Right Pre-Charged DIY Mini Split System

Start with the room, not the brand. Use BTU capacity as your anchor:

Then compare on the factors that actually matter:

• Efficiency: Zone Air offers up to 24 SEER2 efficiency ratings. High SEER2 ratings lead to significant energy savings for homeowners over the life of the system. Energy Star certification indicates higher efficiency cooling and heating systems - look for it on whichever brand you choose.
• Warranty: Zone Air provides a 7-year compressor / 5-year parts warranty that stays valid on a DIY install. MRCOOL DIY 5th Gen offers matching 5-year parts / 7-year compressor coverage with no registration required. A 5-year warranty is commonly offered on HVAC systems for added assurance. Be aware that MRCOOL's warranty document lists exclusions, so check it before mixing line-set generations or modifying the system. Zone Air also has a 30-day return policy for uninstalled systems.
• Rebates: Homeowners may benefit from energy savings and rebates with efficient systems. Check whether your model qualifies for federal IRA tax credits or state programs - both brands can qualify depending on the specific model's certifications. You may receive rebates for cold-climate rated, high-SEER2 equipment.
• Line set fit: Match line set diameter and maximum length to your system's BTU rating. Zone Air simplifies this by bundling correctly sized pre charged line sets into each kit, making it the best value for homeowners who want to avoid ordering mistakes.

Shop the best DIY mini splits for 2026 to compare models side by side.

Final Thoughts: Why Zone Air Is the Easiest 2026 DIY Choice

MRCOOL made pre charged line sets mainstream and deserves credit for proving the market. But in 2026, Zone Air delivers the most streamlined overall DIY experience: efficient models up to 24 SEER2, standardized R-454B refrigerant across every unit, simplified line set options, reliable quality, and 115V plug-and-play power for their most popular sizes. Their direct-to-consumer model means faster, more reliable support - no middlemen, no guessing.

Pre-charged systems can save customers $3,000 to $5,000 compared to contractor installation. That's money back in your pocket, and a space in your home that finally gets the heating and cooling it needs.

1. Map your room and confirm the BTU capacity you need
2. Verify your electrical setup (a 115V Zone Air model may need nothing more than a dedicated outlet)
3. Choose a Zone Air system with the matching pre charged line set
4. Block out a weekend and get it done

If you're ready to protect your comfort without waiting on a contractor's schedule, explore Zone Air's 110V plug-and-play lineup and see how simple a DIY mini split install can actually be.
